Task 9: Final touches

Prerequisites

Time

5 minutes

Tools needed

  • 4mm hex-head key

Step 1: Attaching the MEB-to-battery cable

Prepare:

  • Task 8 assembly
  • MEB-to-battery cable (orange with 2x Weipu connectors)

Step 2: Attaching the additional quarter

Prepare:

  • Step 1 assembly
  • Task 5 additional quarter assembly
  • 3x m5x10 screws (left from the Task 5)
  • 4mm hex-head key

Step 3: Attaching the battery

Prepare:

  • Step 2 assembly
  • Task 4 battery assembly
  • 3x m5x10 screws (left from the Task 4)
  • 4mm hex-head key

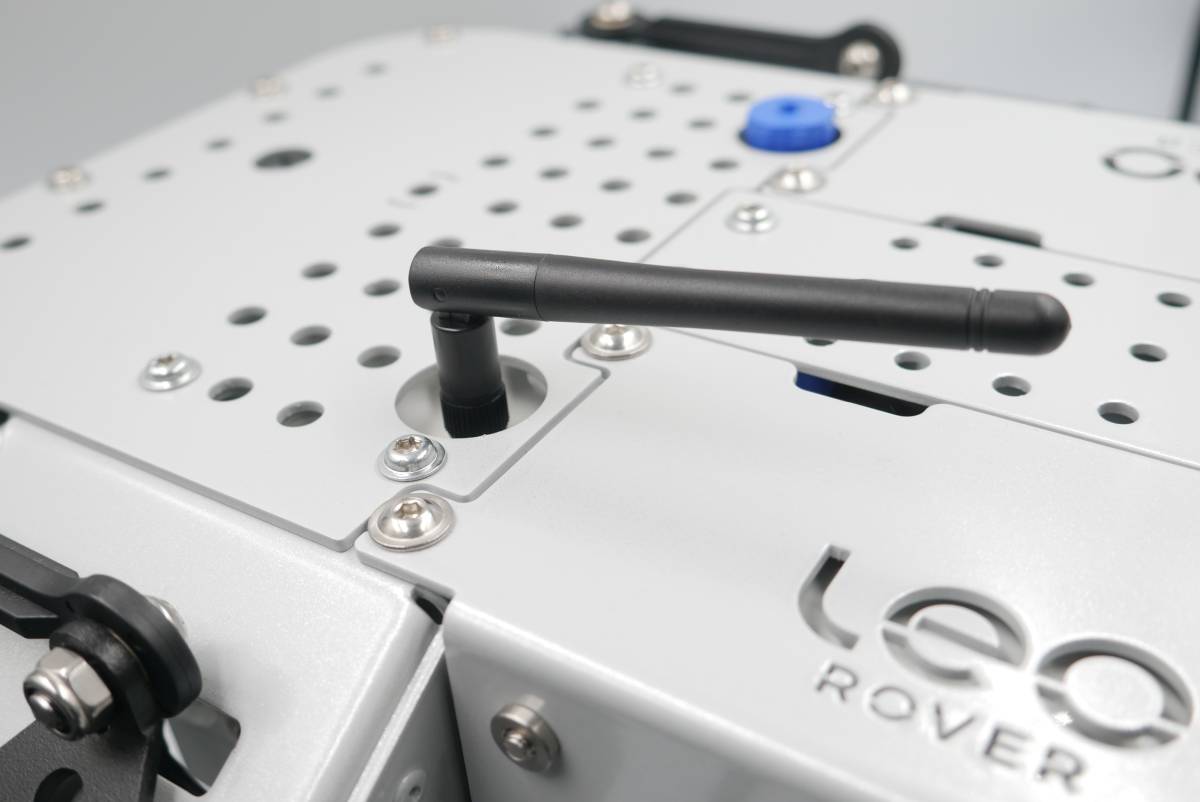

Step 4: Adding the antenna

Prepare:

  • Step 3 assembly
  • 1x antenna

Next step: Go to ->

Task 10: Boot and firmware
