Up UpBoard 7000 8GB

The Up Board 7000 8GB is a powerful and compact single-board computer built on Intel N50 / N97 processors (Alder Lake-N architecture). It features 8GB LPDDR5 RAM and a wide range of I/O options, making it an excellent platform for robotics, industrial automation, and AI at the edge, especially where x86 compatibility is required.

Equipped with Intel UHD Graphics, the board supports hardware-accelerated video decoding and computer vision workloads. The Up Board 7000 is fully compatible with operating systems such as Ubuntu, Windows 10/11, and Yocto Linux, enabling flexible software development, including full ROS 1/2 support for robotic applications.

In mobile robotics, the Up Board 7000 provides a stable x86 platform for running perception pipelines, SLAM, AI inference, and custom control algorithms, benefiting from native support for many industrial tools and frameworks.

Key Specifications:

• Processor: Intel N50 / N97 (Alder Lake-N)
• Graphics: Intel UHD GPU
• Memory: 8GB LPDDR5
• Storage: eMMC 128GB (variant dependent), M.2 slot, microSD
• Connectivity:
  • 2x Gigabit Ethernet
  • USB 3.2 Gen 2 Type-A
  • USB 2.0
  • HDMI 1.4b
  • M.2 2230 (for Wi-Fi/BT), M.2 2242/2280 (for storage)
• Expansion: 40-pin GPIO, UART, I2C, SPI
• Power Supply: 12V DC
• Form Factor: 85.6 x 56.5 mm (Raspberry Pi form factor compatible)

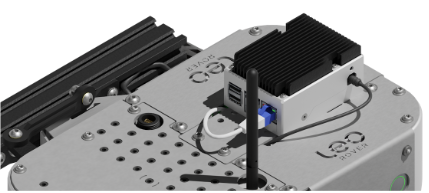

This board is ideal for integrating into robotic platforms like Leo Rover when x86 architecture and compatibility with desktop-class software are necessary.

‍
