Fixposition Vision-RTK 2

Ask for price
EUR
VAT not included

Multi-sensor RTK GNSS system with integrated vision and IMU, delivering centimeter-level positioning and reliable localization even in GNSS-denied environments. Perfect for enhancing mobile robot autonomy.

Get a quote

Main features

No items found.

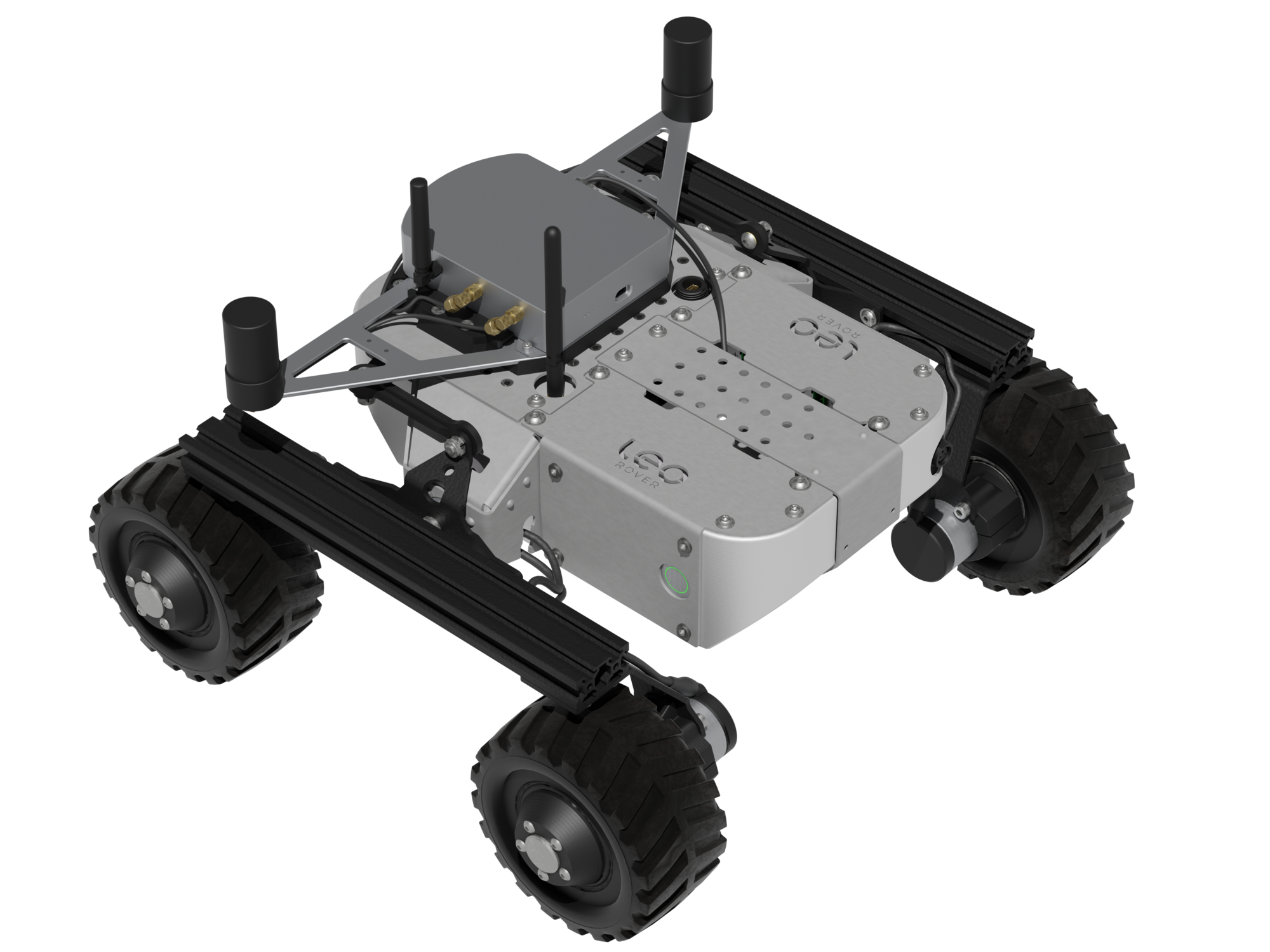

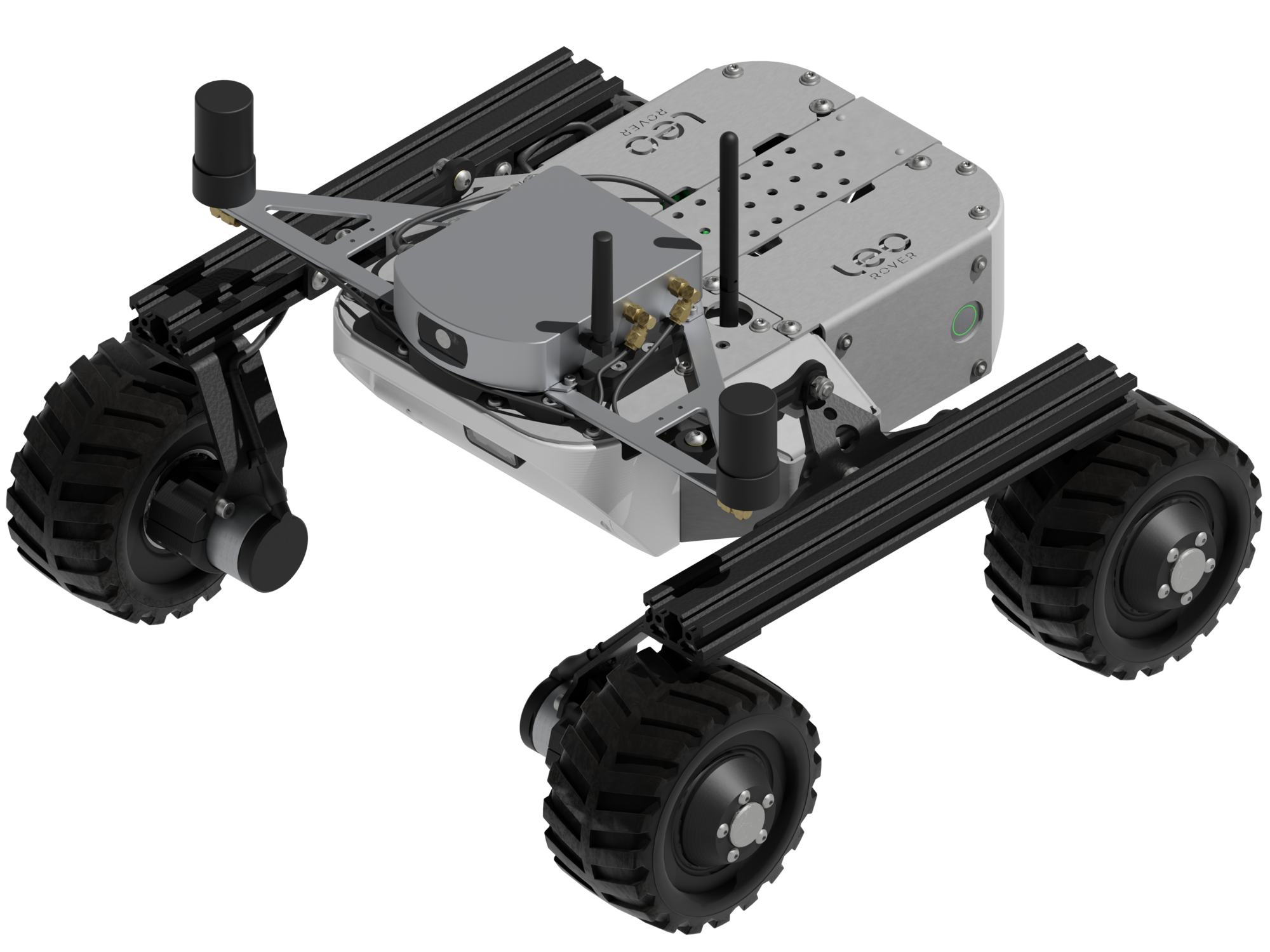

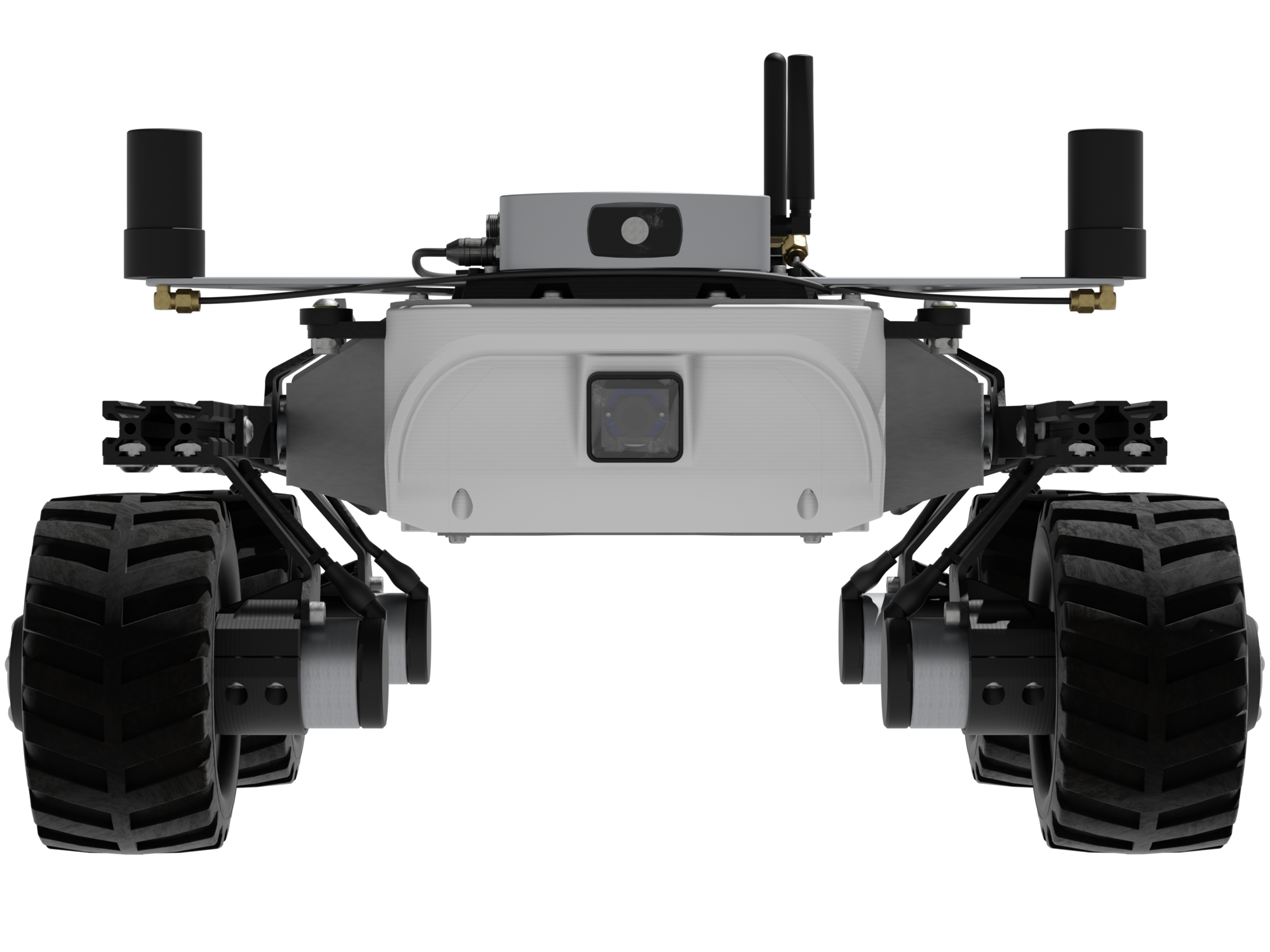

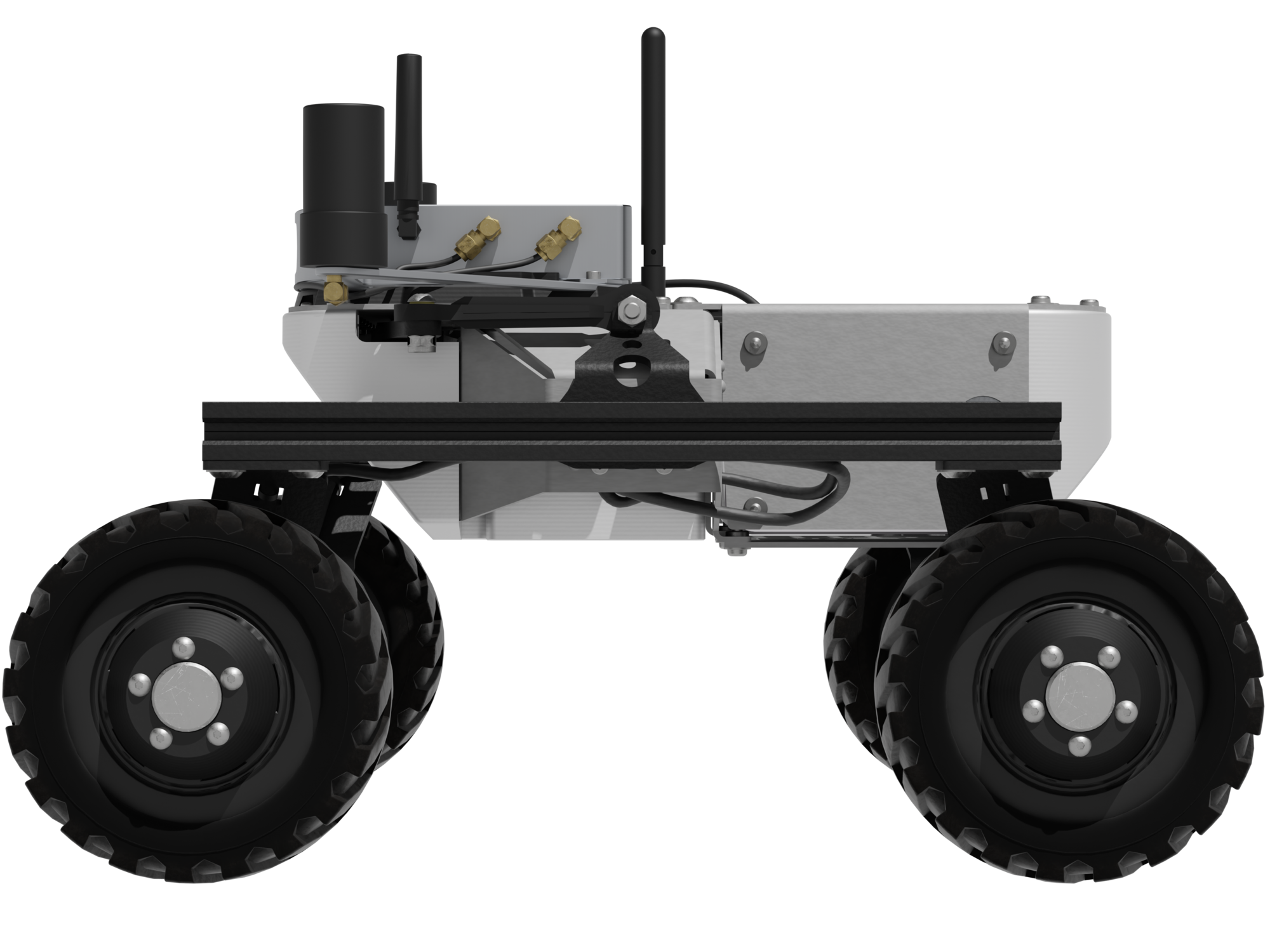

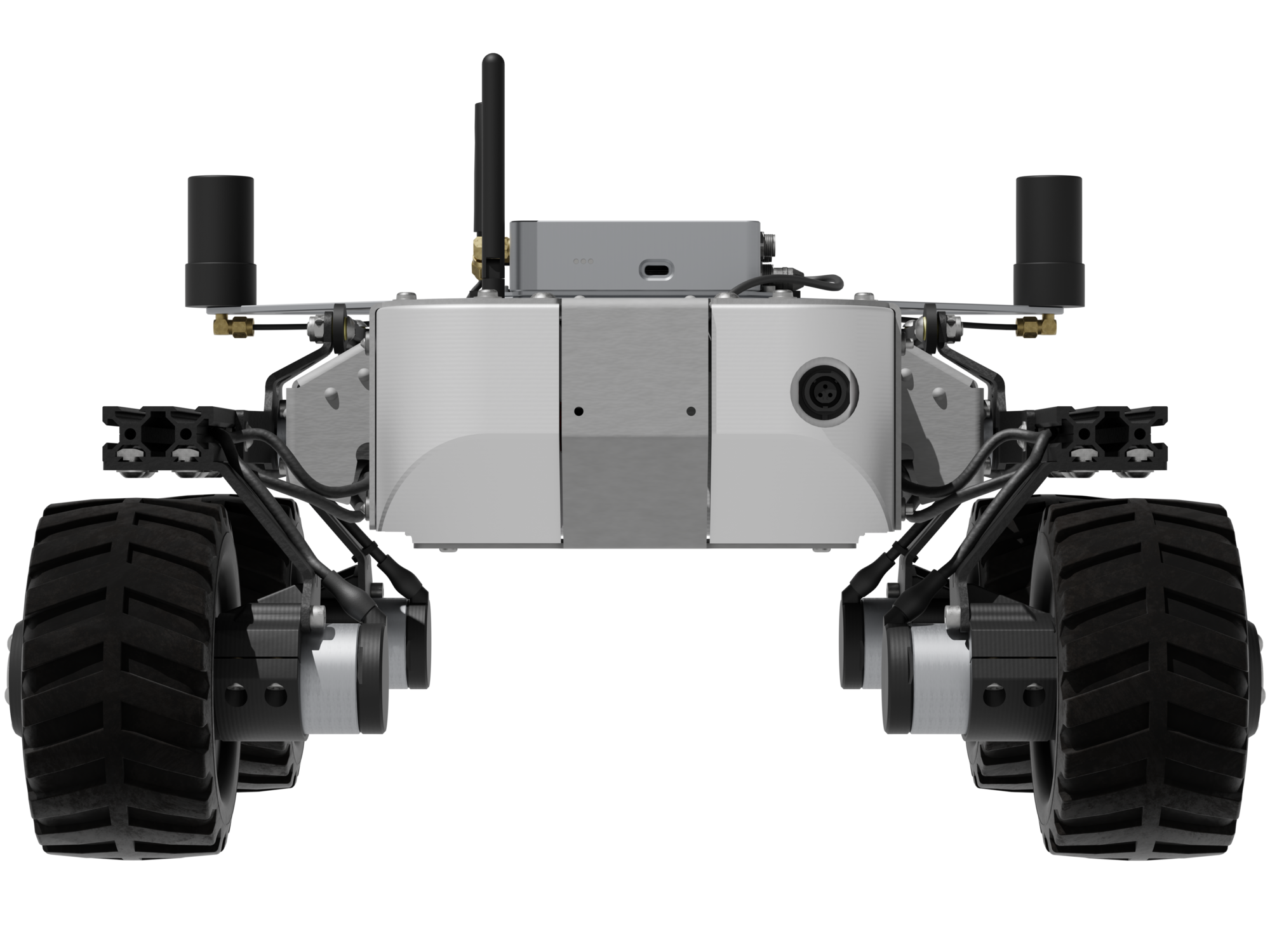

The Fixposition Vision-RTK 2 is a state-of-the-art positioning system combining dual-frequency RTK GNSS, a global-shutter camera, a 6-axis IMU, and optional wheel odometry. This fusion of sensors ensures continuous, highly accurate positioning even when GNSS signals are weak or temporarily lost — such as in urban areas, under trees, or inside large structures.

With a precision of 1 cm + 1 ppm, 0.4° heading accuracy, and up to 200 Hz output rate, the Vision-RTK 2 is ideal for mobile robots, autonomous vehicles, and outdoor survey platforms.

Key features:

  • Position accuracy: 1 cm + 1 ppm (R50)
  • Heading accuracy: 0.4° (with 1 m antenna baseline)
  • Velocity accuracy: 0.05 m/s
  • Drift during GNSS loss: <0.75% of traveled distance (with odometry input)
  • Dual GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
  • Global-shutter camera: 1280×800 px, 120° DFOV
  • IMU: 6-axis accelerometer and gyroscope
  • Optional wheel odometry input
  • Max output rate: 200 Hz
  • Interfaces: 2x UART, CAN, Ethernet, USB-C, Wi-Fi
  • Power supply: 5–36 V DC, typical consumption ~7.5 W
  • Operating temperature: –40°C to +85°C
  • Dimensions: 113 x 130 x 30 mm (sensor), 65 x 72 x 17 mm (weatherproof housing)
  • Weight: 420 g (weatherproof), 49 g (OEM board)

Applications in mobile robotics:

  • Precise outdoor navigation
  • Global positioning for SLAM
  • Localization in GNSS-challenged areas
  • Accurate heading and velocity estimation

Check the integration manual here:

https://docs.fictionlab.pl/integrations/noetic/positioning-systems/fixposition-vision-rtk-2

CAD model

Resources

Estimated shipping time:
Leo Rovers - 5 working days;
addons - please ask;

Available payment options:
- International bank transfer
- PayPal and debit/credit card
- Net30 for Universities
